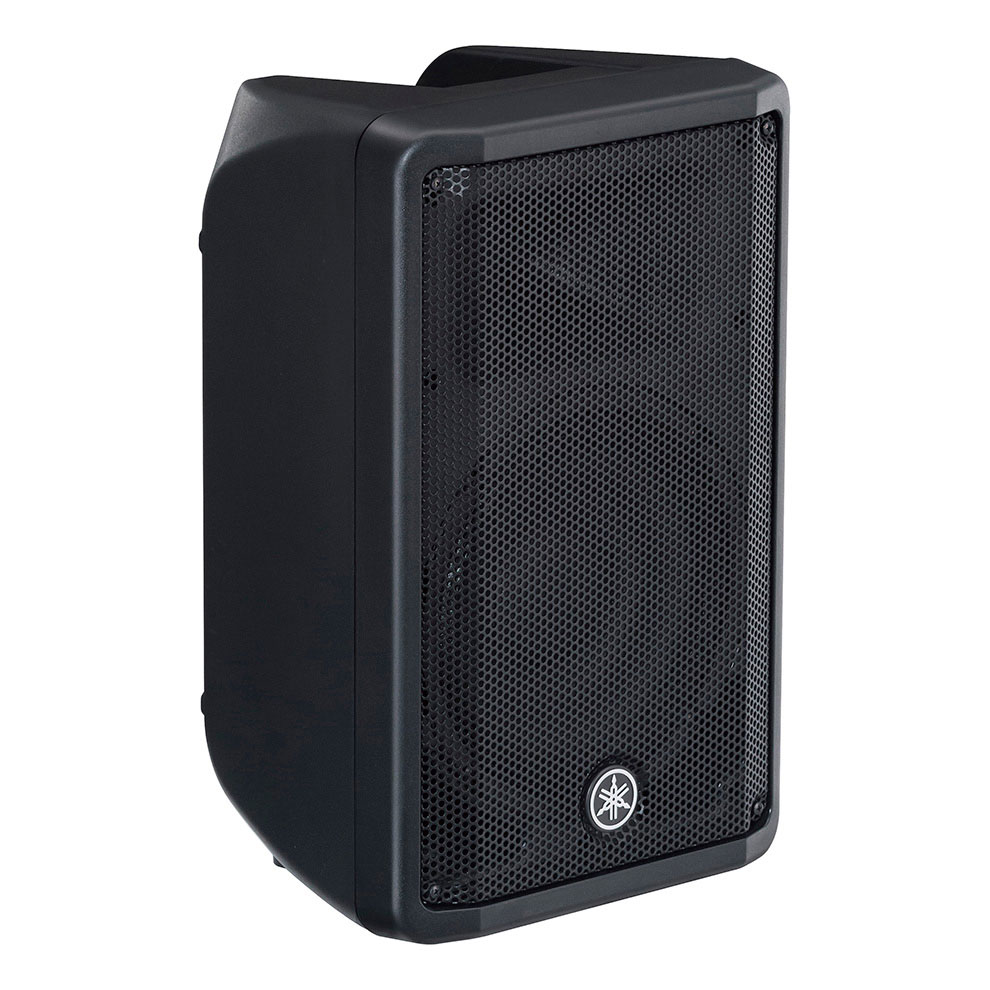

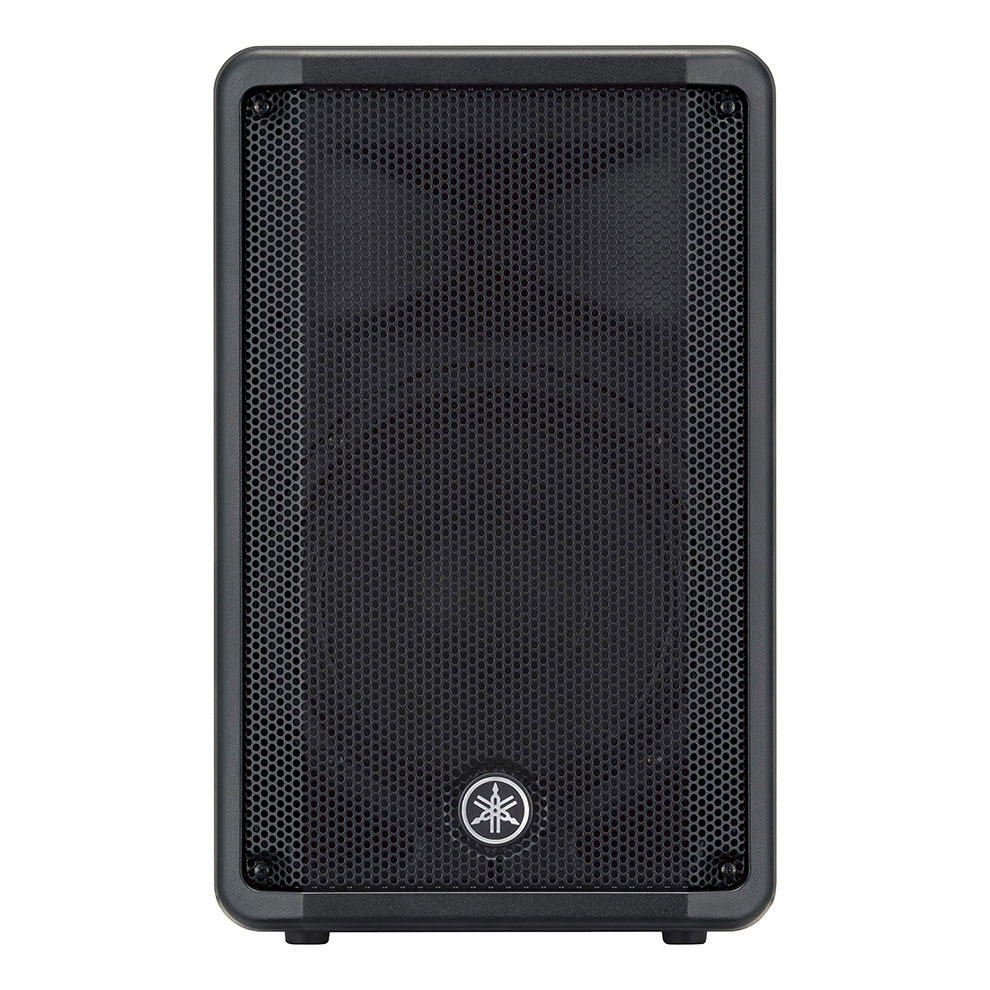

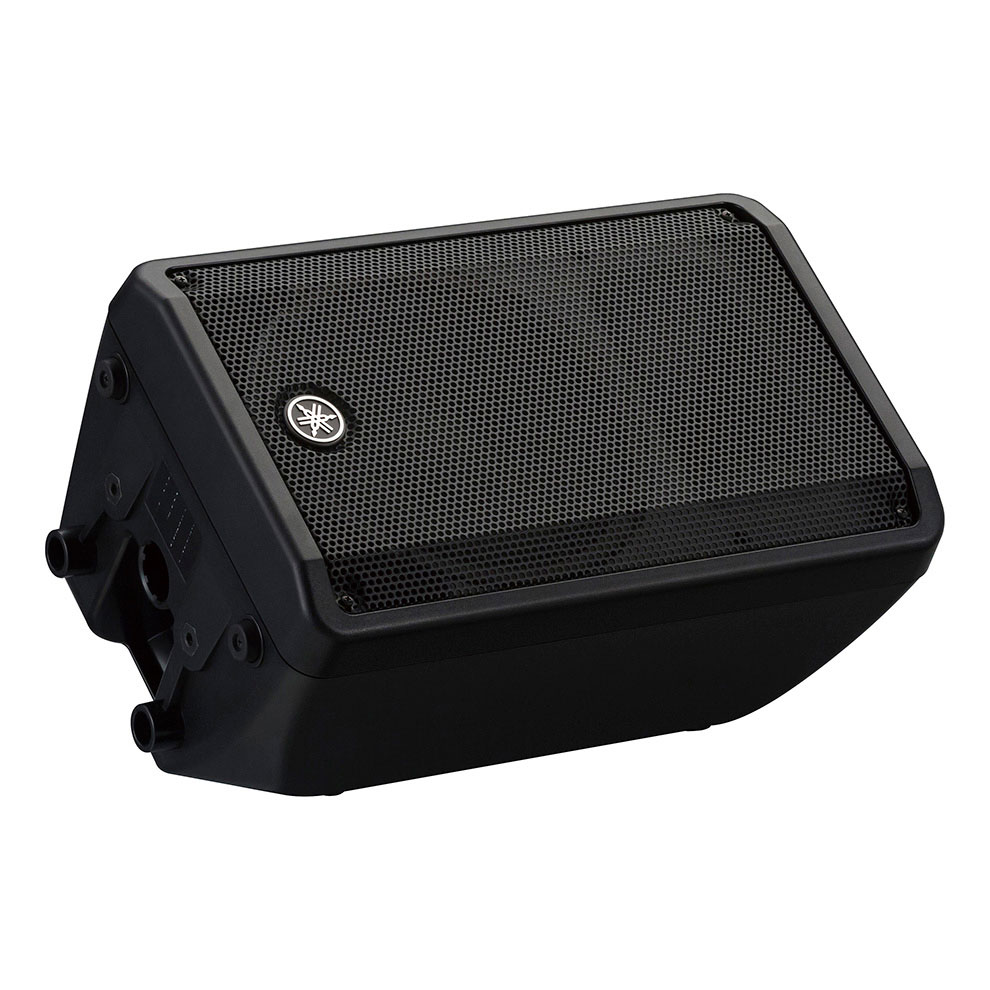

Yamaha DBR10 aktiver Fullrange Lautsprecher
Bei der DBR10 handelt es sich um das kompakteste Modell der Reihe. Die Box ist trotz des kompakten Gehäuses in der Lage, bis zu 129 dB Schalldruck zu liefern und eignet sich bei einer Vielzahl von Anwendungen perfekt als Standardlautsprecher.
459,00 €*
% 535,00 €* (14.21% gespart)Versandkostenfrei
Lieferzeit bitte erfragen
Produktnummer:
2434473
Hersteller:
YAMAHA
Hersteller-Nr.:
DBR10
"Yamaha DBR10 aktiver Fullrange Lautsprecher"
| Speaker type | 2-way, Bi-amp powered speaker, Bass-reflex type | |
|---|---|---|
| Frequency range (-10dB) | 55Hz – 20kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | Diameter:10" cone, Voice Coil:2", Magnet:Ferrite |
| HF | Diaphragm:1", Type: 1" throat compression driver, Magnet:Ferrite | |
| Crossover | 2.1kHz: FIR-X tuning™ (linear phase FIR filter) | |
| Output power | Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W) | |
| Maximum output level (1m; on axis) | 129dB SPL | |

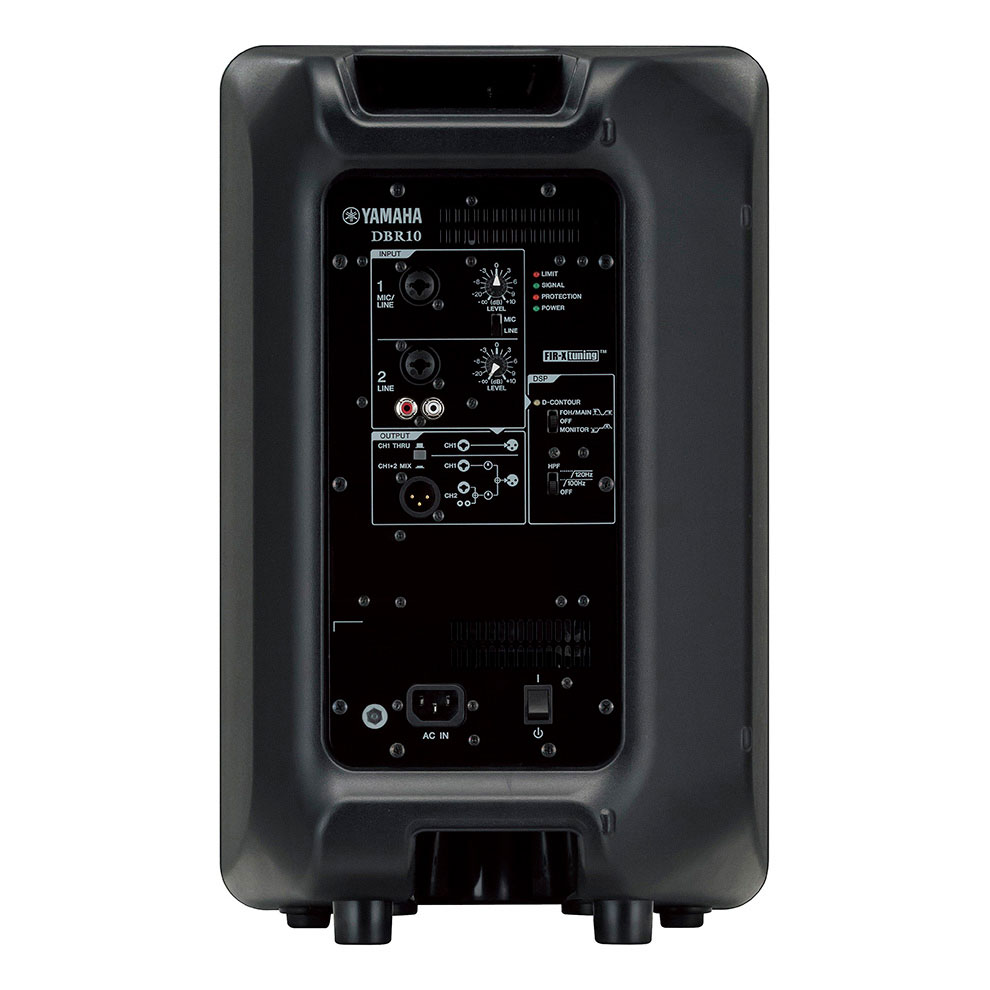

| I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) | |
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF | |
| Heat dissipation | Fan cooling, 4 speeds | |
| Power requirements | 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz | |
| Power consumption | 60W(1/8 Power Consumption), 18W(Idle) | |
| Cabinet material | Plastic | |
| Finish | Black | |
| Handle | Top x 1 | |
| Flying and mounting hardware | Bottom x 2 (Fit for M8 x 15 mm eyebolts) | |
| Pole socket | 35mm (Bottom x 1) | |
| Dimensions | W | 308mm (12.1") |
| H | 493mm (19.4") | |
| D | 289mm (11.4") | |
| Net weight | 10.5 kg (23.2 lbs) | |
| Accessories | BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) | |
