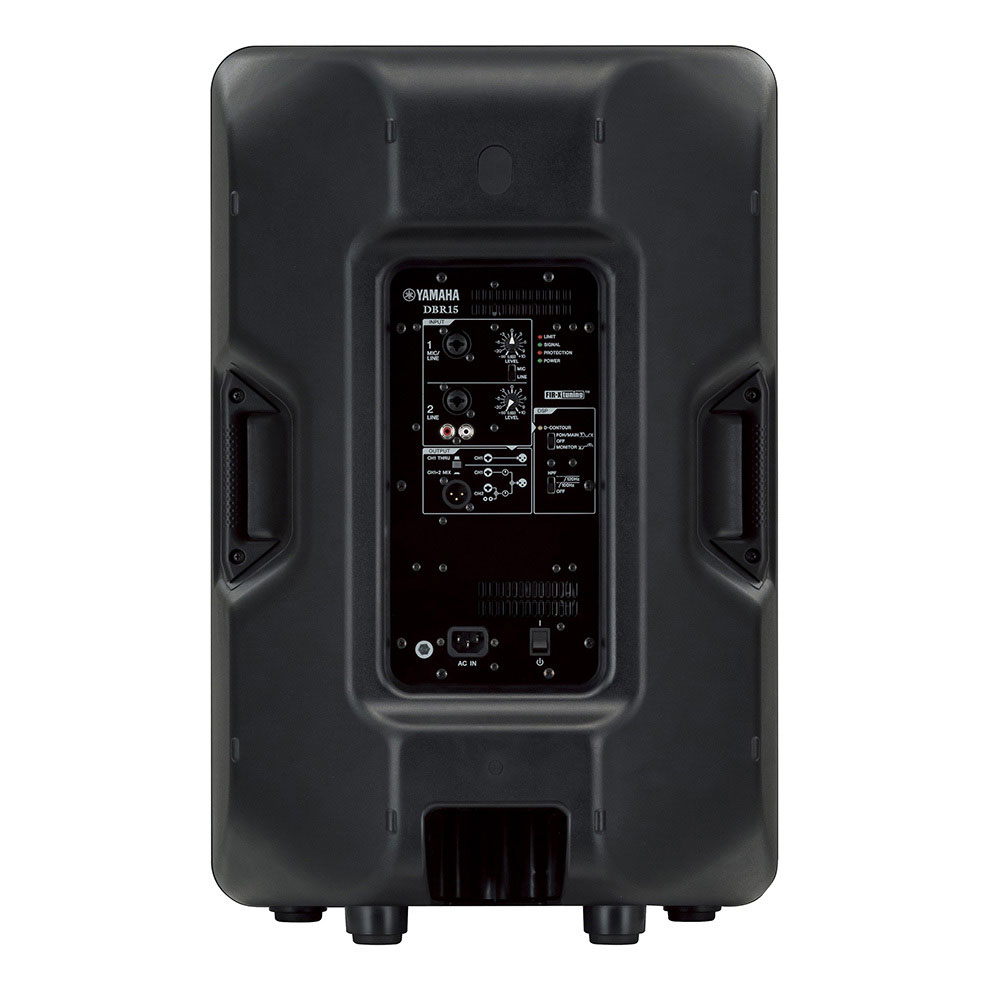

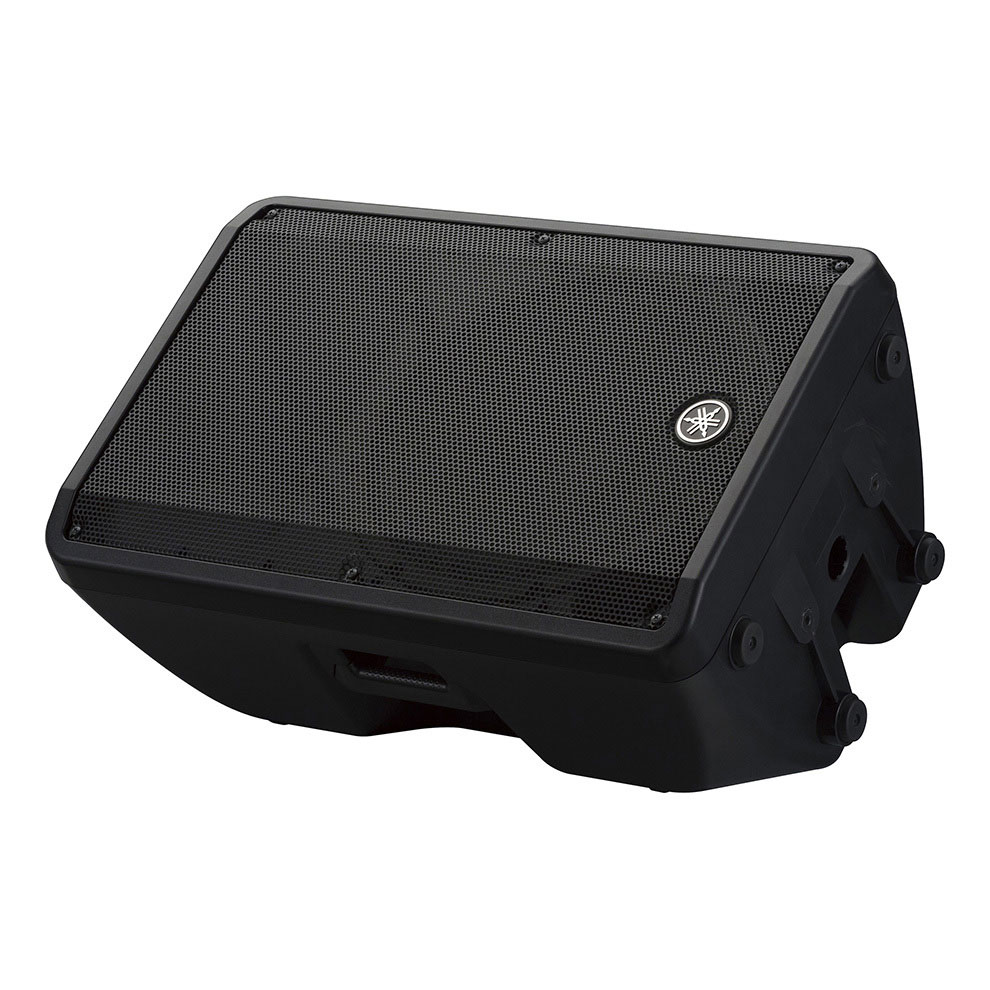

Yamaha DBR15 aktiver Fullrange Lautsprecher
Die DBR15 erreicht mit 132 dB den größten Schalldruck innerhalb der DBR-Modellreihe und reicht in tiefere Frequenzbereiche hinab als die beiden anderen Boxen. Für FOH-Liveanwendungen oder DJ-Sets, bei denen es auf Leistung und kraftvolle Bässe ankommt.
659,00 €*
% 838,00 €* (21.36% gespart)Versandkostenfrei
Lieferzeit bitte erfragen
Produktnummer:
2435273
Hersteller:
YAMAHA
Hersteller-Nr.:
DBR15 E
"Yamaha DBR15 aktiver Fullrange Lautsprecher"
| Speaker type | 2-way, Bi-amp powered speaker, Bass-reflex type | |
|---|---|---|
| Frequency range (-10dB) | 50Hz – 20kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite |
| HF | Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite | |
| Crossover | 2.1kHz: FIR-X tuning™ (linear phase FIR filter) | |
| Output power | Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) | |
| Maximum output level (1m; on axis) | 132dB SPL | |
| I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) | |
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF | |
| Heat dissipation | Fan cooling, 4 speeds | |
| Power requirements | 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz | |
| Power consumption | 74W(1/8 Power Consumption), 18W(Idle) | |
| Cabinet material | Plastic | |
| Finish | Black | |
| Handle | Side x 2 | |
| Flying and mounting hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) | |
| Pole socket | 35mm (Bottom x 1) | |
| Dimensions | W | 455mm (17.9") |
| H | 700mm (27.6") | |
| D | 378mm (14.9") | |
| Net weight | 19.3 kg (42.6 lbs) | |
| Accessories | BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) | |
